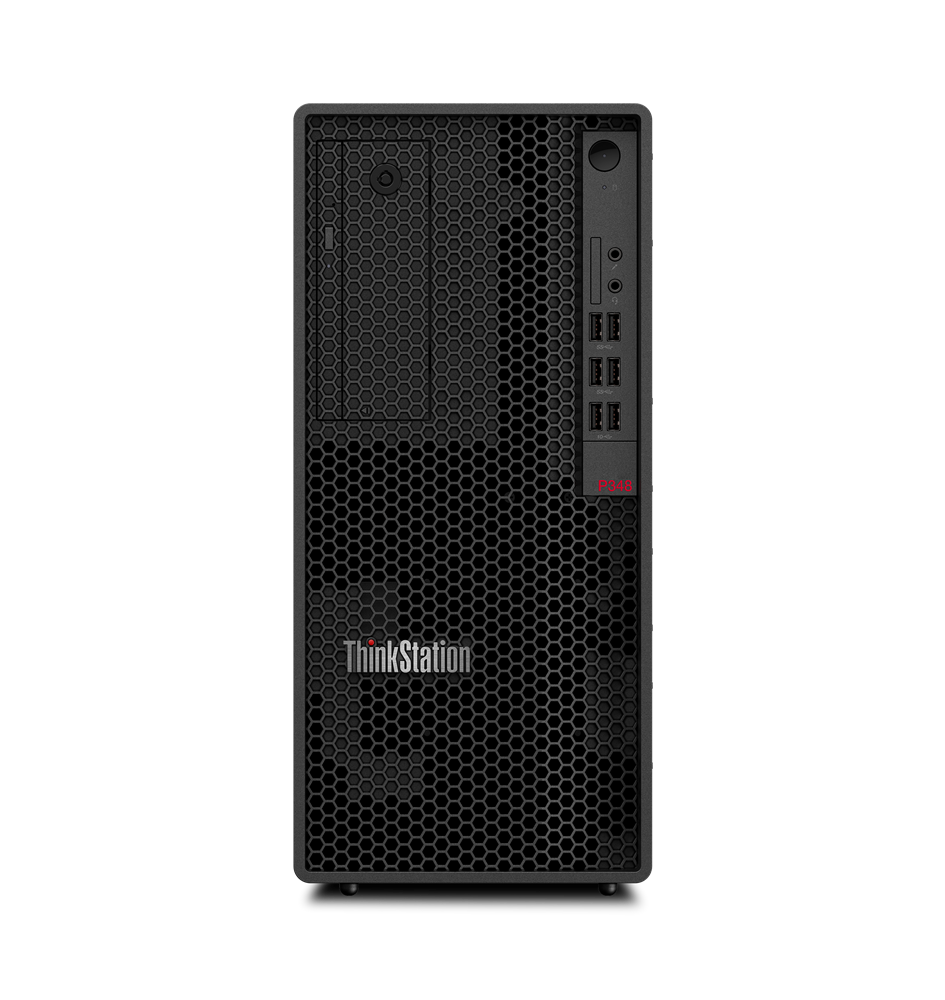

ThinkStation P348 i7-11700 16GB 512GB SSD T1000 4 GB Win11 Pro 30EQ025FTX

 30EQ025FTX

PERFORMANCE
Processor	Intel® Core™ i7-11700 (8C / 16T, 2.5 / 4.9GHz, 16MB)
Processor Sockets	1x FCLGA1200
Integrated Graphics	Integrated Intel® UHD Graphics 750
Discrete Graphics	1x NVIDIA® T1000
Chipset	Intel® B560 Chipset
Memory	2x 16GB UDIMM DDR4-3200 Non-ECC
Memory Slots	Four DDR4 UDIMM slots, dual-channel capable
Max Memory	Up to 128GB (4x 32GB DDR4 UDIMM)
M.2 SSD Drive	1x 512GB SSD M.2 2280 PCIe® 3.0x4 NVMe® Opal
SATA/SAS Drive	-
Storage Support	Up to three drives, 2x 3.5" SATA HDD + 1x M.2 SSD • 3.5" HDD up to 4TB each • M.2 SSD up to 1TB
Optical	-
Audio Chip	High Definition (HD) Audio, Realtek® ALC623-CG codec
Power Supply	500W Platinum Fixed
DESIGN
Keyboard	USB Traditional Keyboard, Black, Turkish
Mouse	USB Calliope Mouse
Expansion Slots	Supports three PCIe® slots with one PCIe 4.0 x16 and two PCIe 3.0 x1. • Slot 1: PCIe 4.0 x16, full height, full length, 75W • Slot 2: PCIe 3.0 x1, full height, half length, 25W • Slot 3: PCIe 3.0 x1, full height, half length, 25W
M.2 Slots	Uo to 1x M.2 SSD via onboard slot
Bays	1x 3.5" disk bay (standard) 1x 2.5" disk bay (optional by 2.5'' HDD cage kit) 1x 3.5" disk bay (optional, comes with disk or 3.5'' HDD cage kit in flex bay)
Flex Bays	1x Flex bay, supports 2nd 3.5" disk bay and 9.0mm optical
Dimensions (WxDxH)	170 x 315.4 x 376 mm (6.7 x 12.4 x 14.8 inches)
Weight	9.48 kg (20.9 lbs, maximum configuration)
CONNECTIVITY
Onboard Ethernet	Realtek® RTL8111K, 1x GbE RJ-45
Optional Ethernet	-
WLAN + Bluetooth	-
Card Reader	SD Card Reader
Front Ports	2x USB 3.2 Gen 2 4x USB 3.2 Gen 1 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)
Optional Front Ports (configured)	-
Rear Ports	4x USB 2.0 (one supports Smart Power On) 1x HDMI® 1x DisplayPort™ 1x VGA 1x Ethernet (RJ-45) 1x line-in (3.5mm) 1x line-out (3.5mm) 1x microphone (3.5mm) 1x serial (9-pin)
Optional Rear Ports (configured)	-
SECURITY & PRIVACY
Security Chip	Firmware TPM 2.0 integrated in processor
Physical Locks	Cable lock E-lock Smart Cable Clip Kensington® Security Slot™, 3 x 7 mm Padlock Loop
Cable Lock	Cable Lock
Chassis Intrusion Switch	-
MANAGEABILITY
System Management	Non-vPro®
Diagnostic	Lenovo® UEFI Bootable Diagnostics
SERVICE
Base Warranty	3-year, Onsite
Included Upgrade	-
Green Certifications	ENERGY STAR® 8.0 EPEAT™ Silver Registered ErP Lot 3 RoHS compliant TCO Certified 8.0
ISV Certifications	Please visit www.thinkworkstations.com/isv-certifications/
SOFTWARE
Operating System	Windows® 11 Pro, Turkish / English
Bundled Software	-
